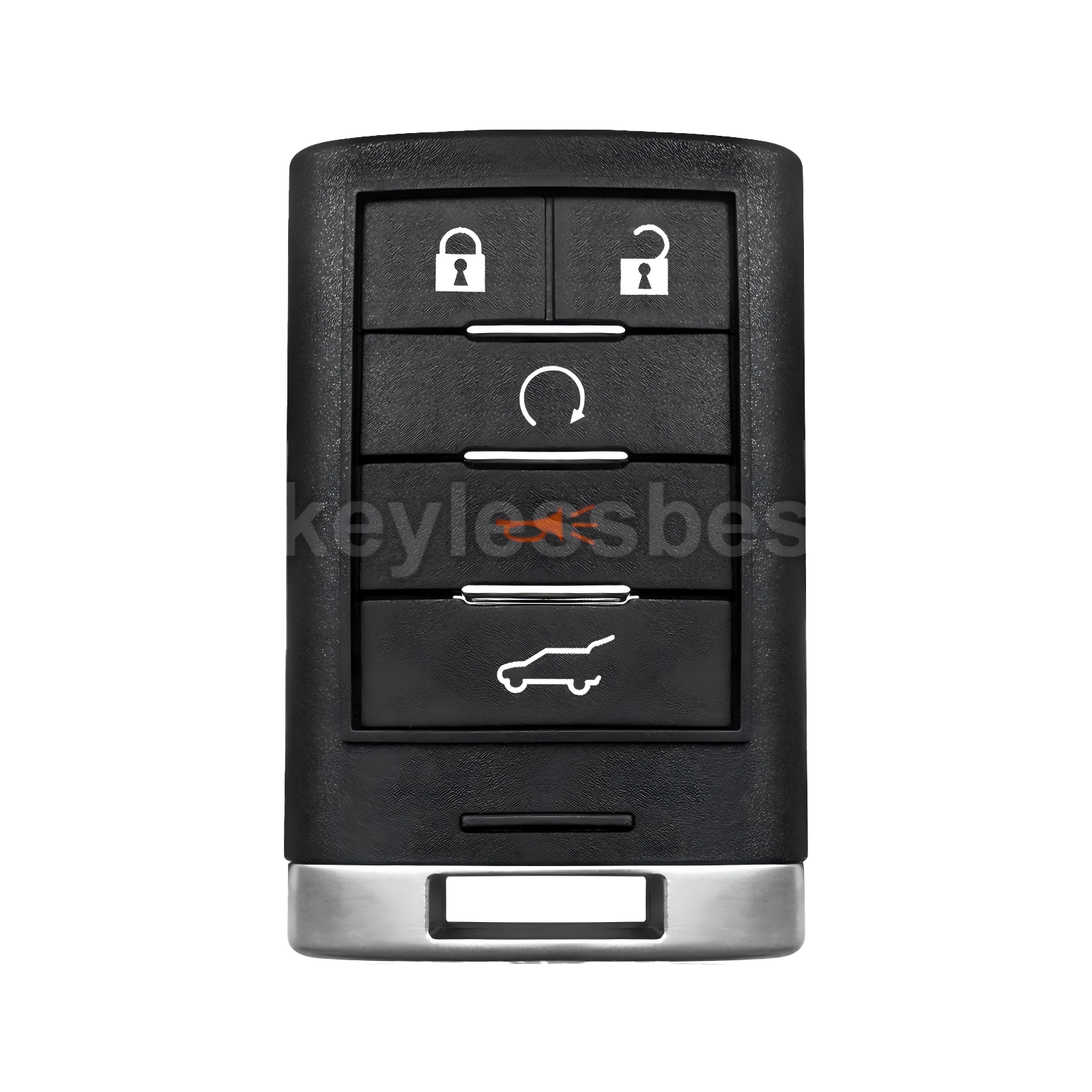

2010-2015 Cadillac ATS ELR SRX XTS Key Fob NBG009768T for Keylessbest

2010-2015 Cadillac ATS ELR SRX XTS Key Fob NBG009768T Compatibility

When you lose a key or want a reliable spare, compatibility is the first thing to confirm. This 5-button Cadillac smart key fob is designed specifically for certain push-to-start models using FCC ID NBG009768T.

Confirm Your Cadillac Model and Year

This 315MHz 5-button Cadillac key fob fits:

• 2010–2015 Cadillac SRX
• 2013–2014 Cadillac ATS
• 2013–2014 Cadillac XTS
• 2014–2015 Cadillac ELR

Match FCC ID, IC, and Part Number

Take your existing Cadillac smart key and check the small text on the back or inside the shell:

• FCC ID: NBG009768T
• IC: 2694A-009768T
• Part Number (PN): PRX-CAD-5B1
• Frequency: 315MHz (must match your original remote)
• Chip: PCF7952 HITAG2 transponder
• Buttons: Lock, Unlock, Remote Start, Trunk, Panic

If your current key shows these numbers (or directly crosses to them in your owner’s paperwork), this Cadillac smart key NBG009768T is the correct replacement style.

If your original key has the same 5-button layout and overall shape, and the IDs match, you’re looking at the correct PRX-CAD-5B1 replacement key for your Cadillac ATS, ELR, SRX, or XTS.

Vehicle fitment for Cadillac smart key NBG009768T

This 5-button Cadillac smart key NBG009768T (PRX-CAD-5B1, 315MHz) fits U.S. vehicles that came from the factory with push-button start / proximity key, not a regular metal key in the ignition.

Cadillac SRX 2010–2015 fitment

Works with 2010, 2011, 2012, 2013, 2014, 2015 Cadillac SRX models that have:

• Push-to-start button on the dash
• 5-button proximity key with Lock, Unlock, Remote Start, Trunk, Panic

If you have an older SRX or a non-prox key system, you’ll need a different style remote, similar to our non-proximity Cadillac CTS and SRX remotes at KeylessBest.

Cadillac ATS, XTS, ELR fitment

This Cadillac smart key NBG009768T also fits:

• 2013–2014 Cadillac ATS with factory proximity / push start
• 2013–2014 Cadillac XTS with 5-button smart key and remote start
• 2014–2015 Cadillac ELR plug-in hybrid with push-button start

Trim level and push-to-start check

Before you order, confirm:

• Your Cadillac has push-button start, not a turn-key ignition
• Your current fob is a 5-button proximity key with the same layout
• FCC ID NBG009768T and IC 2694A-009768T match your original

If those three points line up, this 315MHz 5-button Cadillac key fob is the right fit.

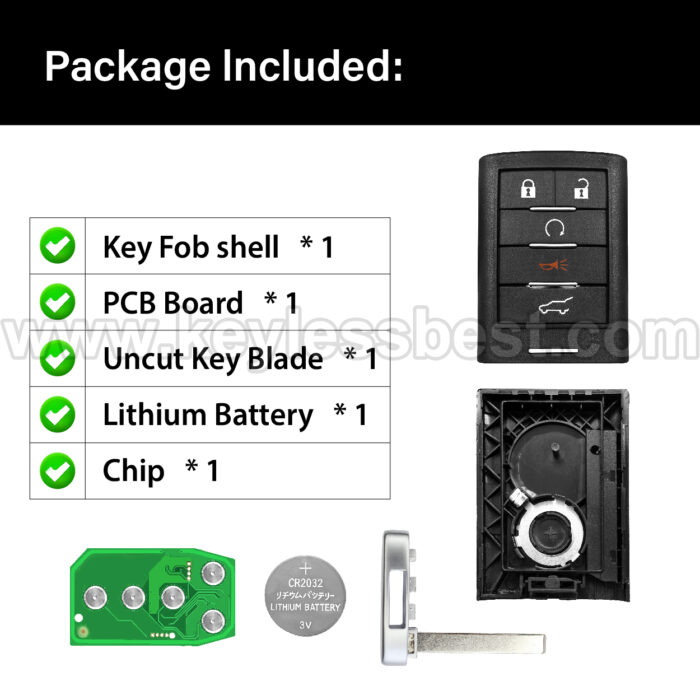

What You Get With This PRX-CAD-5B1 Cadillac Smart Key Fob

When you order this PRX-CAD-5B1 Cadillac smart key fob from us, you’re getting a complete, ready-to-program package built to replace a lost or damaged OEM remote at a fraction of dealer pricing.

• Fully assembled 5-button fob – Complete shell, internal electronics, 315MHz proximity hardware, and PCF7952 HITAG2 chip, matched to FCC ID NBG009768T and IC 2694A-009768T.
• Uncut HU100 emergency blade – Included metal key blade for door and trunk access when the battery is dead; your locksmith will cut it to your VIN or an existing key.
• Pre-installed CR2032 battery – Battery already installed and tested, so your 5-button Cadillac smart key (lock, unlock, remote start, trunk, panic) is ready for programming right out of the box.
• Clear ID for your locksmith – SKU CA-CD001, Part Number PRX-CAD-5B1, plus the NBG009768T / 2694A-009768T IDs printed on the case so any US locksmith or dealer can quickly look it up in their system.
• Brand new aftermarket replacement – 100% new board, case, and blade, never refurbished, never recycled, and individually tested before shipping, giving you a clean, tight-feeling remote that looks and feels like an OEM Cadillac key fob.

Technical specs of Cadillac key fob NBG009768T / 2694A-009768T

I built this 315MHz 5-button Cadillac smart key NBG009768T to match OEM performance while keeping the details simple and clear.

Core specs (quick view)

5-button proximity design

• Full 5-button layout: lock, unlock, remote start, trunk, panic for daily use.
• True Cadillac proximity key with remote start – supports push-button start when properly programmed.
• PCF7952 HITAG2 chip is tuned to GM specs, so this Cadillac key fob replacement 2694A-009768T works like a factory remote.

Key Features and Benefits of the Cadillac Smart Key NBG009768T

The 2010-2015 Cadillac ATS ELR SRX XTS car key fob NBG009768T (IC 2694A-009768T, PN PRX-CAD-5B1) is built to look, feel, and work like your original Cadillac smart key, without the dealer price tag.

• OEM-style look and feel – The case shape, logo position, and finish closely match the original Cadillac 5-button key, so it blends right in with your existing keys and interior.
• Solid weight and balance – We match the weight and balance of dealer keys, so it doesn’t feel cheap or hollow in your hand or pocket.
• Quality button feedback – Each of the 5 buttons (Lock, Unlock, Remote Start, Trunk, Panic) is designed for a clean “click” you can feel, reducing accidental presses and helping the fob hold up to daily use.
• Durable build for everyday use – The shell and internal supports are made to handle drops, pocket wear, and temperature swings common in daily driving across the U.S.
• Big savings vs. dealer pricing – This aftermarket Cadillac smart key replacement typically costs far less than buying and programming a new OEM fob at the dealership, while delivering the same core function once programmed.
• Individually tested before shipping – Every 315MHz 5-button Cadillac key fob is tested multiple times for signal strength, button function, and proximity response so you’re not guessing if the electronics work.
• Reliable for lost or damaged keys – Whether you’ve cracked the case, worn out the buttons, or lost a remote, this Cadillac smart key NBG009768T is a dependable replacement once properly cut and programmed by a locksmith or dealer.

Programming 2010-2015 Cadillac ATS ELR SRX XTS key fob NBG009768T

For this Cadillac smart key NBG009768T / PRX-CAD-5B1, programming must be done with dealership-level equipment, so you’ll need either a Cadillac dealer or a certified automotive locksmith who works with GM proximity keys. On-board DIY programming is not supported on these 2010–2015 Cadillac ATS, ELR, SRX, and XTS push-to-start systems because the PCF7952 HITAG2 transponder and immobilizer are tied into the car’s anti-theft module and need secure access through a diagnostic tool.

A typical locksmith process looks like this:

• Connects a diagnostic scanner to your Cadillac’s OBD port
• Adds and programs the new proximity key to the vehicle’s immobilizer
• Syncs the remote functions (lock, unlock, remote start, trunk, panic)
• Cuts the HU100 emergency blade to match your original key
• Tests the blade in the driver’s door and trunk and confirms the key starts the car

Programming Cadillac 5 Button Smart Key Requirements

For this Cadillac 5 button smart key NBG009768T, programming always has to be done by a professional with the right GM tools. Most of our U.S. customers use a mobile automotive locksmith, but a Cadillac dealer can also handle it. In both cases, you’ll need the vehicle on-site, a valid ID, and proof of ownership (registration or title) before they’ll program the key for security reasons.

Common Questions About Cadillac Smart Key Fob NBG009768T

Is the HU100 emergency blade included and do I need it cut right away?

• The uncut HU100 emergency blade is included with the key fob.
• You don’t have to cut it immediately, but I strongly recommend cutting it so you can unlock the door or trunk if the battery or fob ever fails.

Difference between this aftermarket key and an OEM Cadillac dealer key

Performance and compatibility are what we match; branding and price are where we differ.

Troubleshooting if range is short or buttons don’t respond

Try these quick checks before assuming the key is bad:

• Replace the battery with a fresh CR2032 (cheap and often fixes range issues).
• Check orientation and make sure the battery is seated firmly.
• Test from outside the vehicle away from heavy wireless/interference sources.
• Verify programming if the car won’t start but buttons work (or vice versa).
• Inspect the case for impact or water damage.

Related Cadillac key fob accessories

If you’re picking up this 2010-2015 Cadillac ATS ELR SRX XTS car key fob NBG009768T 2694A-009768T PRX-CAD-5B1 315MHz 5 buttons, I strongly suggest grabbing a few essentials at the same time so you’re fully covered in daily use and in emergencies.

• Extra CR2032 batteries keep your Cadillac smart key fob powered, so you’re not stuck with a dead remote when you’re in a rush.
• A HU100 key cutting service (at a local locksmith or key shop) is worth doing right away, so your emergency blade can unlock the door and trunk if the battery ever dies.
• Leather or silicone key fob covers add grip and protect the proximity key from drops, scratches, and everyday wear, which keeps it looking new longer.
• If your Cadillac uses a 4-button remote, I also offer a dedicated 4-button Cadillac XTS/ATS key fob NBG009768T replacement that matches those models.
• It’s always smart to order a second spare key fob and keep it at home; if you ever lose your main remote, you can still drive the car without paying rush dealer prices or towing the vehicle for emergency programming.

Shipping, Warranty & Returns for Your Cadillac Key Fob Order

When you order this 2010-2015 Cadillac ATS ELR SRX XTS car key fob NBG009768T 2694A-009768T PRX-CAD-5B1 315MHz 5 buttons from us, I keep shipping and after-sale service simple and clear.

• Same-day handling: Orders placed before 2:00 PM EST ship the same business day; later orders ship the next business day.
• Fast delivery: Standard U.S. shipping usually arrives in about 3–7 business days, with optional expedited services if you need your key fast.
• Tracked shipping options: I offer both free standard shipping on most U.S. orders and paid upgraded shipping, and every package includes tracking sent to your email so you can follow your Cadillac smart key NBG009768T all the way to your door. You can also browse related options in our Cadillac SRX key fob collection.
• 365-day warranty: Your Cadillac key fob replacement 2694A-009768T is backed by a full 1-year warranty against defects in materials, electronics, and normal-use failures (battery life and physical abuse are not covered).
• 30-day free returns: If you order the wrong key or change your mind, you have 30 days for a hassle-free return on unused, uncut keys in original condition for a full refund of the product price.
• How to send a key back:
  • Repack the fob in its original box or a padded mailer so it doesn’t get damaged.
  • Include a note with your name, order number, and reason for return (exchange or refund).
  • Use the prepaid return label we send you or your own trackable shipping method.
  • Drop it off with the listed carrier; once the key arrives and passes a quick inspection, I process your refund or send your replacement.
